MMC UNLOCK CLIP
by Deddy Suyanto hobi-elektronika
Do you have

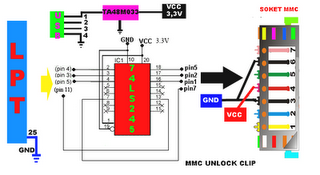

problem with not remembering MMC password?, if you are, make
this circuit :
MMC protected by
password will not be detected by the computer, when using the hand phone, the
hand phone will ask for your password. Very easy to use it, first install the

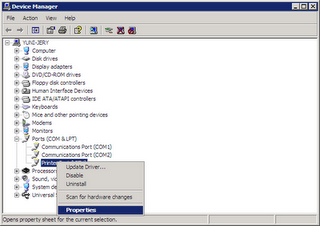

drivers LPT, input I / O range LPT, if you do not know can be seen in the
Device manager, left click and select Properties see the figure below:

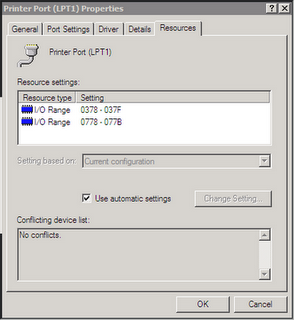

After click the
Properties window will appear as below, click the Resources tab there ever
printed I / O Range, which is the value taken in the first row. Examples of
the computer I I / O range of his 378-37F see picture:

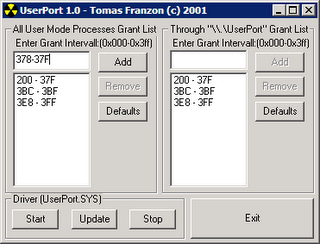

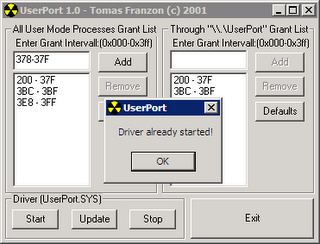

Well now input
value in the program box "user port", then click "start" to show the message
"driver already started". See figure:
After the driver installed next steps connect the LPT cable to the circuit and the USB cable to the USB port. insert protected MMC, and then running MULAI.bat and then type "buka", then the MMC protected will unprotected so can be used again. The next step to format the MMC using Card Reader / Handphone, MMC would have detected
Download
