RING COUNTER (shift register sequencer)

Form Book Practical Electronics For Inventors by Paul Scherz

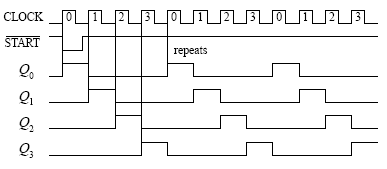

The ring counter (shift register sequencer) is a unique type of shift register that incorporates feedback from the output of the last flip-flop to the input of the first flip-flop. Figure 12.119 shows a 4-bit ring counter made from D-type flip-flops. In this circuit, when the START' input is set low, Q0 is forced high by the active-low preset, while Q1, Q2, and Q3 are forced low (cleared) by the active-low clear. This causes the binary word 1000 to be stored within the register. When the START line is brought low, the data bits stored in the flip-flops are shifted right with each positive clock edge. The data bit from the last flip-flop is sent to the D input of the first flip-flop. The shifting cycle will continue to recirculate while the clock is applied. To start fresh cycle, the START line is momentarily brought low.



Ring counter using positive edge-triggered D flip-flops







THIS APPLICATION CAN USE AS LAMP DECORATION OR ADVERTISER. YOU CAN MAKE MORE OUTPUT BY THOSE CONNECTION USE MORE D-FLIP FLOP
