SPI Flash Programmer

Form Hobi elektronika the nice guys Dedy Suyanto



SPI Flash Memory is a data storage memory, many applications using this one electronic component. This component has shifted the conventional flash memory that has long existed. The equipment that uses this type of memory include: DVD Player, Motherboards, and others. advantages of this memory is very easy to install or revoked, because only 8 pins, there also has 16 pins, but rarely used, that we often encounter is that the type 8 pin. Programmers who try to be made in here and use the Parallel Port connection, For Computer Users with motherboards that do not have parallel port connection, can use a USB To Parallel Converter. This programmer support for SPI Memory:







ST Micro M25P(E)
ST Micro M45P(E)
PMC PM25LV
Macronic MX25L
Atmel AT25FS
Atmel AT25DF
Atmel AT25F
Amic A25LxxP
Amic A25Lxxx
EON EN25(B/D/F/P)
EON EN25T
Winbond W25X
Winbond W25Q
SST SST25(LV/VF)xxx
SST SST25VFxxxB
Spansion S25FL
ESMT F25L



circuit:



Download:

Software Programmer

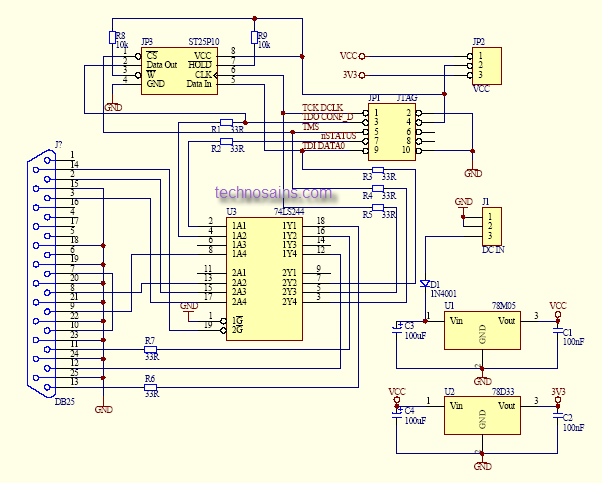

Circuit is as on figure /p>
